How to build with bamboo? Contemporary bamboo architecture may appear complex at first glance, but as we delve into the structural systems employed in these inspiring buildings, you’ll discover a world of elegant simplicity. This article illuminates four fundamental structural systems used in bamboo construction that have stood the test of time and innovation.
Post-And-Beam Structures: Timeless Elegance

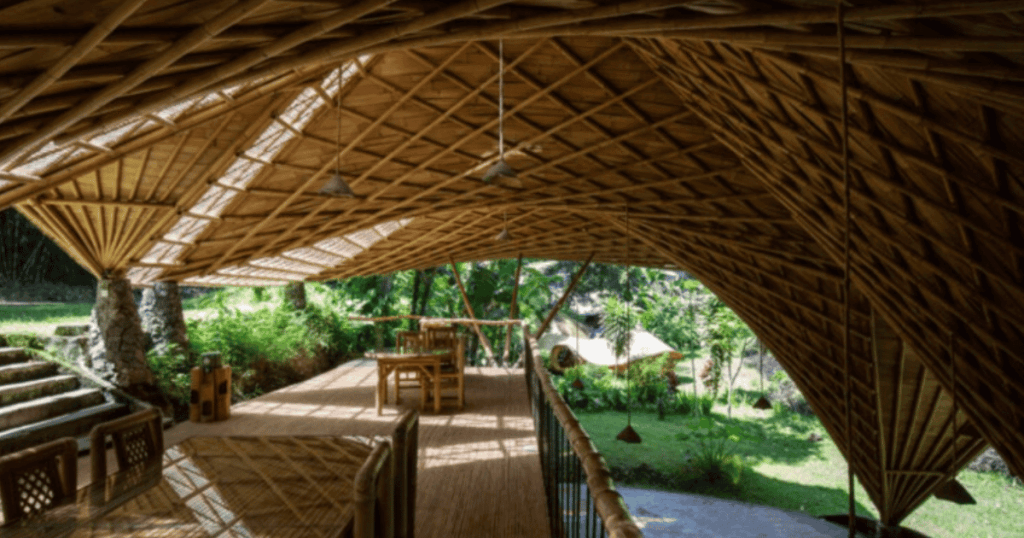

Post and Beam Structures, reminiscent of traditional timber framing, form the bedrock of bamboo architecture. The structural foundation comprises three essential elements: vertical posts, horizontal beams, and cross-bracings. These elements work in harmony to create a resilient structure that can withstand lateral forces such as wind and seismic activity. Typically, round bamboo poles serve as the primary structural components, delivering not only stability but also aesthetic appeal.

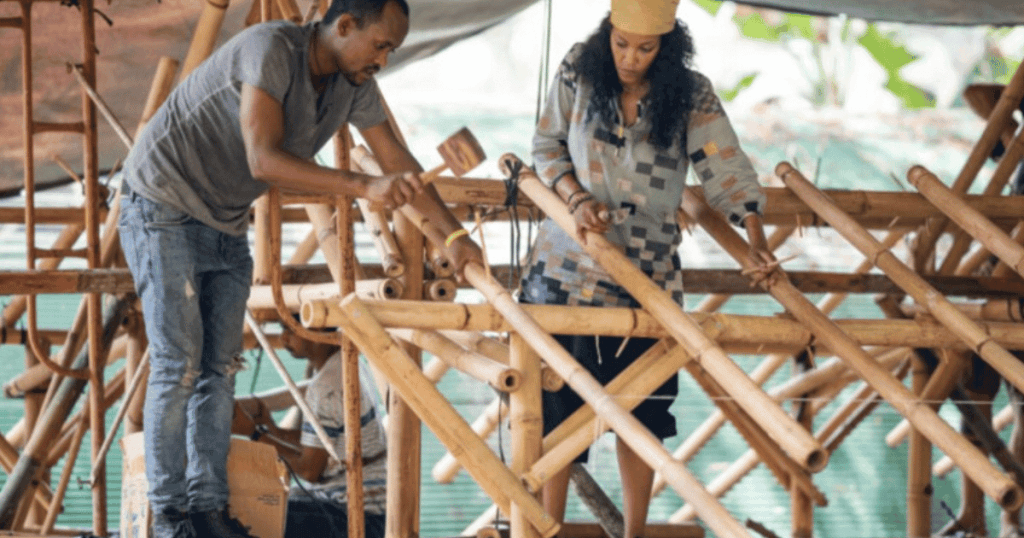

Constructing post and beam structures may require skilled craftsmanship, as various joint types, including fish mouth and angle joints, are involved. However, modern solutions like bolted joints combined with grouting have streamlined the process, reducing manual labor and cost.
In an era of technological advancement, 3D-printed inserts now emulate traditional joints, offering an exciting blend of tradition and innovation. This dynamic fusion makes bamboo architecture a constantly evolving field, opening new possibilities for sustainable construction.
Hyperbolic Paraboloids: Beauty Meets Strength

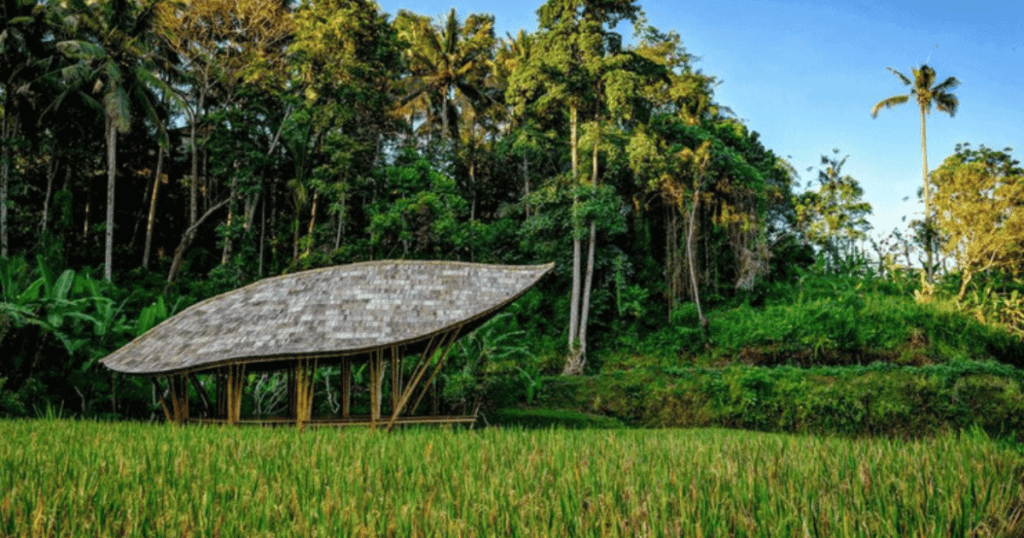

Hyperbolic paraboloids, also known as ‘hypars,’ feature a distinctive saddle shape that marries concave and convex surfaces, resulting in a visually captivating structure. This unique shape grants the shells remarkable stiffness, making them ideal for roofing structures. The construction process involves the initial placement of poles in two directions, followed by hoisting opposing vertices and pressing alternate vertices together to create the signature curvature. The poles are secured with bolted joints or bamboo pins.
Hyperbolic paraboloids excel at efficient load transmission, enabling them to carry compression in the arches while creating tension in the linear structural members. These properties make them a preferred choice for various constructions.
Hyperbolic (Twisted) Towers: Engineering Marvels

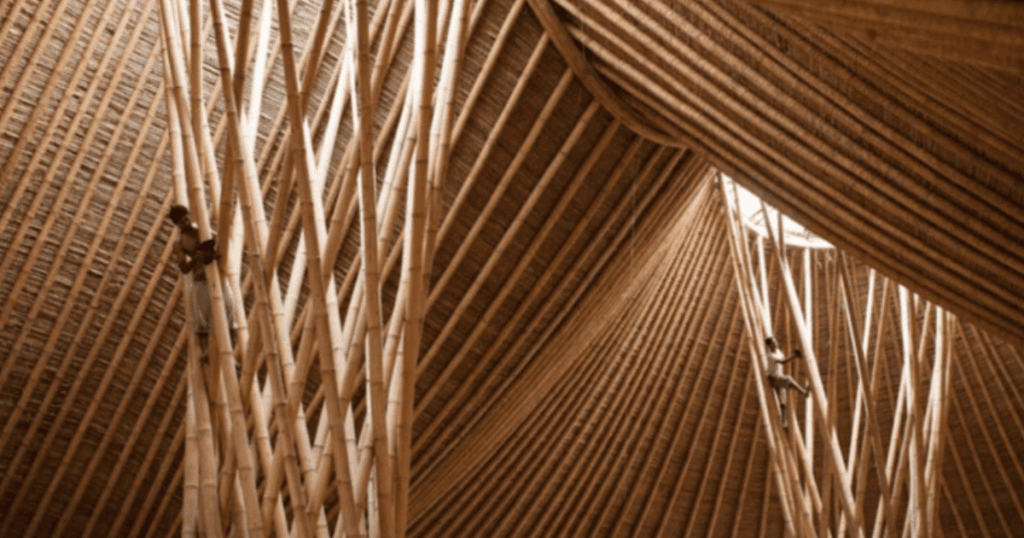

Hyperbolic towers, akin to reciprocal structures, are engineering marvels that showcase bamboo’s strength and versatility. These towers, shaped like single-sheeted hyperboloids, offer unique geometries by rotating a hyperbola around a defined axis. The key to their construction lies in creating an accurate model to determine the base, middle, and top section diameters. These parameters are interconnected, significantly impacting the final tower height.
Reciprocal towers derive their strength from the intersection points created by opposing twists, and reinforcement rings can be added for enhanced stability. The construction process involves twisting and securing bamboo poles in opposing directions to achieve the desired shape.
Spatial Gridshells: Art Meets Engineering Build With Bamboo

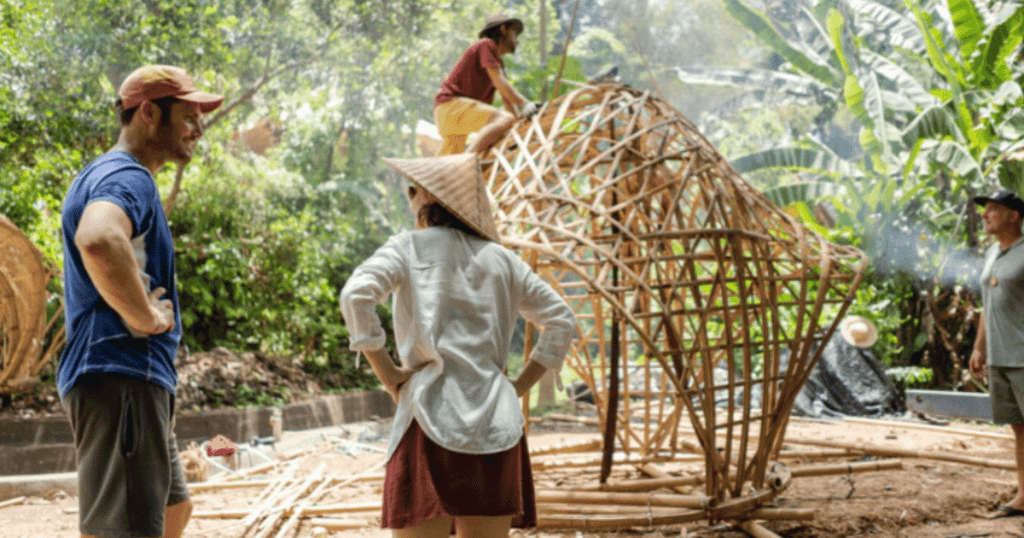

Spatial Gridshells epitomize the boundless potential of bamboo construction. These structures, crafted from a lattice of bamboo splits, can form elegant, curved, and sturdy domes or other shapes. The construction process starts with creating main frames, arches, or rings that provide foundational support. Bamboo splits are then added, progressively filling the gaps and resulting in a curved structure.
The construction of spatial gridshells is a flexible and creative process. Designers can experiment with organic woven patterns or adhere to precise measurements. Green bamboo splits, recently treated, are recommended for flexibility and durability.
Remember, bamboo inherent characteristics, coupled with human creativity and innovation, make it an ideal material for sustainable, resilient, and visually stunning structures. As the bamboo architecture field continues to evolve, the possibilities are limitless.
